Model NO.
VT1000 2-5 SIM card
Fuel Sensor
Yes
Camera
Yes
Data Logger
4MB
Backup Battery (mAh)
1000mAh
Input Voltage (V DC)
12 ~90V
Size (mm)
130*68*28mm
Inputs
5 Ports
Outputs
5 Ports
Cut off Engine
Yes
Weight(G)
197
Transport Package
Neutral Color Box
Specification
Quad-band
Trademark
Neutral
Origin
China
HS Code
8517691090
Production Capacity
10, 000/Month
Screen Size:
No Screen
Use:
Automotive
Certification:
RoHS, FCC, CE
Warranty:
2 Years
Software:
Free Tracking Platform
iButton Reader:
Car Alarm& Driver Identify
Fleet Management Online GPS Dual SIM Card Tracker up to 5 sim card
There have two scene to use 2-5 sim card GPS tracker, we can install 5 different country's SIM to track the car uninterruptedly.
First.
In some country, there have different quality SIM card signal in some area, and we need to select the best SIM signal to track the car.
Second.
When a car travel to other countries. welcome to check below pic, it is real-time tracking in the Burundi, louvenne, Uganda, Kenya, Tanzania.

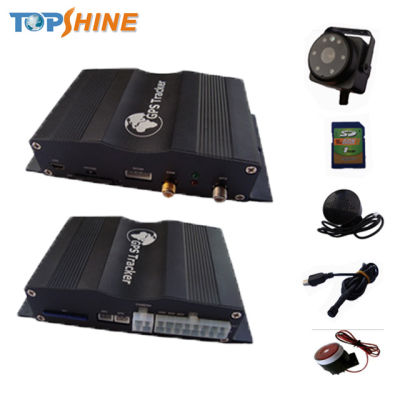

Products Overview Topshine tracker VT1000 is a most advanced and high-cost effective GPS tracker, it is equipped with ARM9 high speedy microprocessor; Supporting dual camera (location&driving information log on picture); Bidirectional communication; Support max 64GB SD card for storing data and pictures; 4 A/D connectors for multi fuel sensor monitoring; Support unique passive RFID/phone reader for automatic anti-theft and driver identification; And many useful functions and extensibility for fleet management and vehicle security purposes.
Application
* For vehicle tracking and security
* Intelligent fleet management
* Two way communication
* Camera monitoring
Specification
| Technical Parameters: | |
| Power Supply | +12V - +90V / 1.5A |
| Backup Battery | 1000mAh |
| Dimension | 130mm x 68mm x 28mm |
| Installation Dimension | 130mm x 68mm x 28mm |
| Weight | 197g |
| Operating temperature | -20° to 75° C |
| Humidity | 5% to 95% Non-condensing |
| Frequency | 850/900/1800/1900Mhz |
| GPS Module | latest GPS SIRF-Star III chipset |
| GPS Sensitivity | -158dB |
| GPS Frequency | L1, 1575.42 MHz |
| C/A Code | 1.023 MHz chip rate |
| Channels | 20 channel all-in-view tracking |
| Position Accuracy | 10 meters, 2D RMS |
| Velocity Accuracy | 0.1 m/s |
| Time Accuracy | 1 us synchronized to GPS time |
| Default datum | WGS-84 |
| Reacquisition | 0.1 sec., average |
| Hot start | 1 sec., average |
| Warm start | 38 sec., average |
| Cold start | 42 sec., average |
| Altitude Limit | 18,000 meters (60,000 feet) max. |
| Velocity Limit | 515 meters/second (1000 knots) max. |
| LED | 2 LED lights to show GPS/GSM working status. |
| Flash Memory | 4MB |
| Interface | 5 digital inputs, 3 negative and 2 positive triggering; 2 analog inputs; 5 outputs. |
| Packing Measures: | |||
| Neutral | Dimension (mm) | Weight (KG) | Capacity |
| Box | 225x160x55 | 0.65 | 1 set |
| Carton | 470x340x310 | 14 | 20 sets |
Feature:
* Support limit the vehicle speed within the controllable range
* Support 2 GSM SIM cards, auto/manually switch to best network, max support 5 sim cards
* Ublox7 GPS industrial high sensitive module
* GPS tracker + RFID driver identification for fleets
* Support OBD2 connectorto read out DTC from ECU car computer
* support OTA update (update to newest firmware by SMS/GPRS)
* Support SD card
* Two way communications, listen in voice and speak to driver
* Support Active RFID & passive RFID / smart phone RFID for driver(student) ID identification and smart anti-theft function
* Support max 4 fuel sensors monitor
* Support camera, Photo logger function with location & driving information
* Cut off engine from remote by SMS/GPRS
* support crash sensor for accident alarm
* support fuel stealing monitoring
* support fleet management
* support harsh braking and harsh acceleration alarm
* get real time address street name/Google map link by SMS
* Multiple Geo-Fence Setting and in/out of fence alarm
* Movement alert, over speed Alert, main power cut off alert etc.
* inbuilt 4MB data logger for saving position history GSM blind area
* A/C ON/OFF detection
Package & Accessories* Camera
* Fuel sensor
* Temperature sensor
* Passive RFID kit
* Ibutton reader
* SD card
* Crash sensor
* Smart phone reader
* OBDII
* Door sensor
* Alcohol Sensor
* Speed Limiter
Our advantage
* Provide free Tracking Platfrom (PC base & Android APP) lifelong. No charge.
* 2 years warranty
* All of our products have CE & RoHS & SGS certification
* Supply OEM&ODM service.
* Our engineer team could customize your personality tracking platform
* Professioal R&D team provide Customization and after-sale service lifelong .
* 100% made of industrial-grade component,GSM module have certified(CE2200)and with legal IMEI code.
Payment & Shipment:
Payment Term: PayPal /western union /TT
Shipping Term: DHL /Fedex /TNT /ARAMEX/EMS
Lead time: Samples within 1 days of delivery.bulk production within 5-7days of delivery.
