GPS tracker VT310N is a GPS/GSM/GPRS tracking device which is specially developed and designed for vehicle real-time tracking and security. With superior GPS and GPRS modules, it has good sensitivity and stable performance. Especially, VT310N is well designed to work with our web-based tracking system, which is suitable for a company to establish a tracking server to provide real-time tracking solutions to their customers or manage their fleet.
GPS tracker VT310N can work with fuel sensor to real time detect fuel consumption and generate one fuel report on the free GPS tracking platform.
1. Application
* Vehicle Real Time Tracking
* Vehicle Security/Anti-Hijack
* Fleet Management
2. Features & Functions
* GPS coordinates and I/O data acquisition;
* Real time tracking;
* Smart algorithm of data acquisition (time, distance, angle, ignition and event based);
* Sending acquired data via GPRS (TCP/IP and UDP/IP protocols);
* 10,000 records saving into flash memory;
* Events on I/O detecting and sending via GPRS or SMS;
* One configuration file enables convenient configureation;
* Multi geofence zones (rectangular or circle);
* Deep sleep mode(saving vehicle's accumulator);
* Built-in 500 mA battery;
* Advanced overspeeding detection;
* Immobilizer scenario which enables to start engine only after reading smart phone reader;
* Real time tracking via the web-platform
* Get location physical name via SMS & from the web-platform
* Google Map link for location via SMS, it shows your location on map via mobile phone.
* SOS Panic button
* Remote Engine cut off to stop the car in safe condition
* Wiretapping/remote listening
* I/O: 5 Inputs, 5 Outputs, 2 Analog Input
* Analog input for Fuel sensor detecting/monitoring (optional)
* Cut extetnal power alert
3. Specifications
| Items | Specifications |
| Dimension | 75*54*25mm |
| Weight | 123g |
| Input voltage | DC 9V~24V/1.5A |
| Back-up Battery | 450mAh/3.7V |
| Power Consumption | 65mA standby current |
| Operating Temperature | -20°C~55°C |
| Humidity | 5%~95% |
| Battery Work Time | 33 hours in power-saving mode and 8 hours in normal mode |
| LED | 2 LED lights to show GPS, GSM status |
| Button | 1 SOS and 1 power on/off |
| Microphone | Default |
| Memory | 2M Byte |
| Sensor | Motion sensor |
| GSM Frequency | GSM 850/900/1800/1900MHz |
| GPS Chip | Latest GPS SIRF-Star III Chipset |
| GPS Sensitivity | -161dB |
| Positioning Accuracy | 10meters, 2D RMS |
| I/O | 5 Input 2 Analog Input Detection 5 Output 1 USB port |
4. Wiring diagram
| Input 1/SOS | Digital Input 1 (negative triggering), E.g. connect SOS panic button |
| Input 2 | Digital Input 2 (negative triggering), E.g. detecting status of Door open/close |
| Input4 | Digital Input 4 (positive triggering), E.g. detecting status of ACC on/off |
| Output 1 | E.g. Connect relay to cut off engine or fuel |
| Output 2 | E.g. Connect siren /buzzer |
| Red wire | Positive, DC In (power source). Input voltage: 9V~36V. 12V suggested. |
| GND | NegativeAD Green wire It can be used to connect with fuel sensor etc |

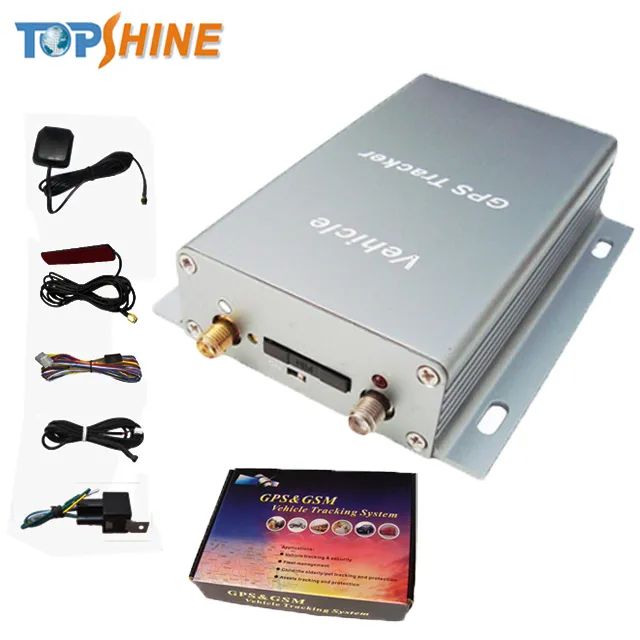

5. Accessories of GPS tracker
| Standard accessories | |
| 1 main unit VT310N | 1 GPS antenna |
| 1 wiring | 1 GSM antenna |
| 1 12v/24v relay | 1 SOS button |
| 1 built in battery | |
| Optional accessories | |
| Ultrasonic fuel sensor | Cuttable fuel sensor |
| Temperature sensor | Crash sensor |
| Speed limiter | Microphone |
| Siren/buzzer | Configure USB cable |
6. Topshine service
1. Any inquiries will be replied within 12 hours on workday.
2. Professional manuafacurer and wholesaler for 10 years.
3. OEM available:
* Customized logo or color box
* We can help you to design and put it into production about your idear
4. After-sale service:
* All products will have been strictly Quality checked in workshop before packing
* All our products have 24 mouths warranty, and we are sure our products will be free from maintenance
5. Shipping way: DHL/UPS/Aramex/fedex/air transportation/sea transportation
6. Fast delivery: Sample order in stock; 10~100pcs: 2~3 days; 3~7 days for bulk order
7. Payment: T/T , Western Union, Paypal and RMB
7. Why choose Topshine company
*Professional manufacturer, less intermediate links, then more competitive price and quicker service than a trade company.
*10 year experience in GPS tracking system and car alarm security system, strict ISO9001 quality control an rigorous tests before shipment,ensures our superior and proven reliable quality. Tests include high and low temperature aging test, vibration test, noise tests, high and low voltage change tolerance test, etc.
*Top R&D team for GPRS, GSM, system integration etc. let it possible for us to supply professional solutions, quick support andmeet with your special and complicated requirements in short time.
*Easy to use Free online worldwide tracking platform on our server, you can track and monitor live data or view historical data totally free on our web server, without any monthly charges.
* 90% turnover for exporting, with experience for global markets.
* Customization/OEM/ODM/Buyer's labeling service is welcomed.
