Model NO.
23X9-12
Tread Pattern
Tp312
Kind
Solid Tire
Tire Hierarchy
Solid Tires
Cord Material
Rubber
Inner Tube
Solid Tire
Season
All Season Tire
Customized
Customized
Condition
New
Maxload
3730kg@10km/H
Color
Black
Pattern
Tp312
Brand
Topower
Customization
Yes
Place of Origin
Yancheng, Jiangsu
Transport Package
Pallet
Trademark
TOPOWER
Origin
China
HS Code
40129090
Production Capacity
50000 Pieces
After-sales Service:
Provided
Warranty:
Provided
Type:
Solid Tire
Diameter:
582mm
Tire Design:
Solid Tire
Certification:
ISO
Product Description
Deep Tread Electric Forklift Solid Tire 23x9-12 23*9-12 for Linde Toyota
Product paraments:
Size:23×9-10
Rim:6.50
Overall diameter:582MM
Width:214MM
Max-load:3730kg@10km/h
Brand:Topower
Application: Forklift
Product Features:
Improved traction
Greater tread depth
Low rolling resistance
Very high mileage
Outstanding lateral guidance
Extremely quiet running
Other Size Information:
Size:23×9-10
Rim:6.50
Overall diameter:582MM
Width:214MM
Max-load:3730kg@10km/h
Brand:Topower
Application: Forklift
Product Features:
Improved traction
Greater tread depth
Low rolling resistance
Very high mileage
Outstanding lateral guidance
Extremely quiet running
Other Size Information:
| Size | Rim | Overall diameter (mm) | Width (mm) | MAX.LOAD(kg) | Other Industrial | ||||||
| Counterbalanced Lift Truck | |||||||||||
| 10km/h | 16km/h | 25km/h | |||||||||
| LOAD | ROTATION | LOAD | ROTATION | LOAD | ROTATION | 10km/h | 25km/h | ||||
| 140/55-9 | 4.00E | 380 | 125 | 1380 | 1060 | 1260 | 970 | 1170 | 900 | 1050 | 900 |
| 15x4 1/2-8 | 3.00 | 380 | 125 | 1005 | 775 | 915 | 705 | 850 | 655 | 775 | 655 |
| 18×7-8 | 4.33 | 457 | 170 | 2430 | 1870 | 2215 | 1705 | 2060 | 1585 | 1870 | 1585 |
| 5.00-8 | 3.00 | 458 | 140 | 1255 | 965 | 1145 | 880 | 1060 | 815 | 960 | 815 |
| 3.75 | 458 | 140 | 1465 | 1125 | 1335 | 1025 | 1235 | 950 | 1120 | 950 | |
| 16×6-8 | 4.33 | 420 | 162 | 1545 | 1190 | 1410 | 1085 | 1305 | 1005 | 1185 | 1005 |
| 21×8-9 | 6.00 | 532 | 206 | 2890 | 2225 | 2645 | 2035 | 2455 | 1890 | 2230 | 1890 |
| 23×9-10 | 6.50 | 582 | 214 | 3730 | 2870 | 3405 | 2620 | 3160 | 2430 | 2865 | 2430 |
| 23X10-12 | 8.00 | 587 | 230 | 4449 | 3415 | 4050 | 3130 | 3770 | 2900 | 3420 | 2900 |
| 27×10-12 | 8.00 | 668 | 240 | 4595 | 3535 | 4200 | 3230 | 3900 | 3000 | 3540 | 3000 |
| 200/50-10 | 6.50 | 460 | 221 | 2910 | 2240 | 2665 | 2050 | 2470 | 1900 | 2240 | 1900 |
Product Pictures:
Company profile:
Our company specializes in the production of all kinds of solid tires in Yancheng, Jiangsu with strong technical force and complete facilities. We are a national high-tech enterprise, a member of China Rubber Industry Association and Jiangsu Rubber Industry Association. The carefully constructed TOPOWER and JADEKING series products are widely used in coal mines, steel mills, port terminals, construction machinery and other industries. Products are exported to more than 60 countries and regions around the world.
Exhibition:
Certificate:

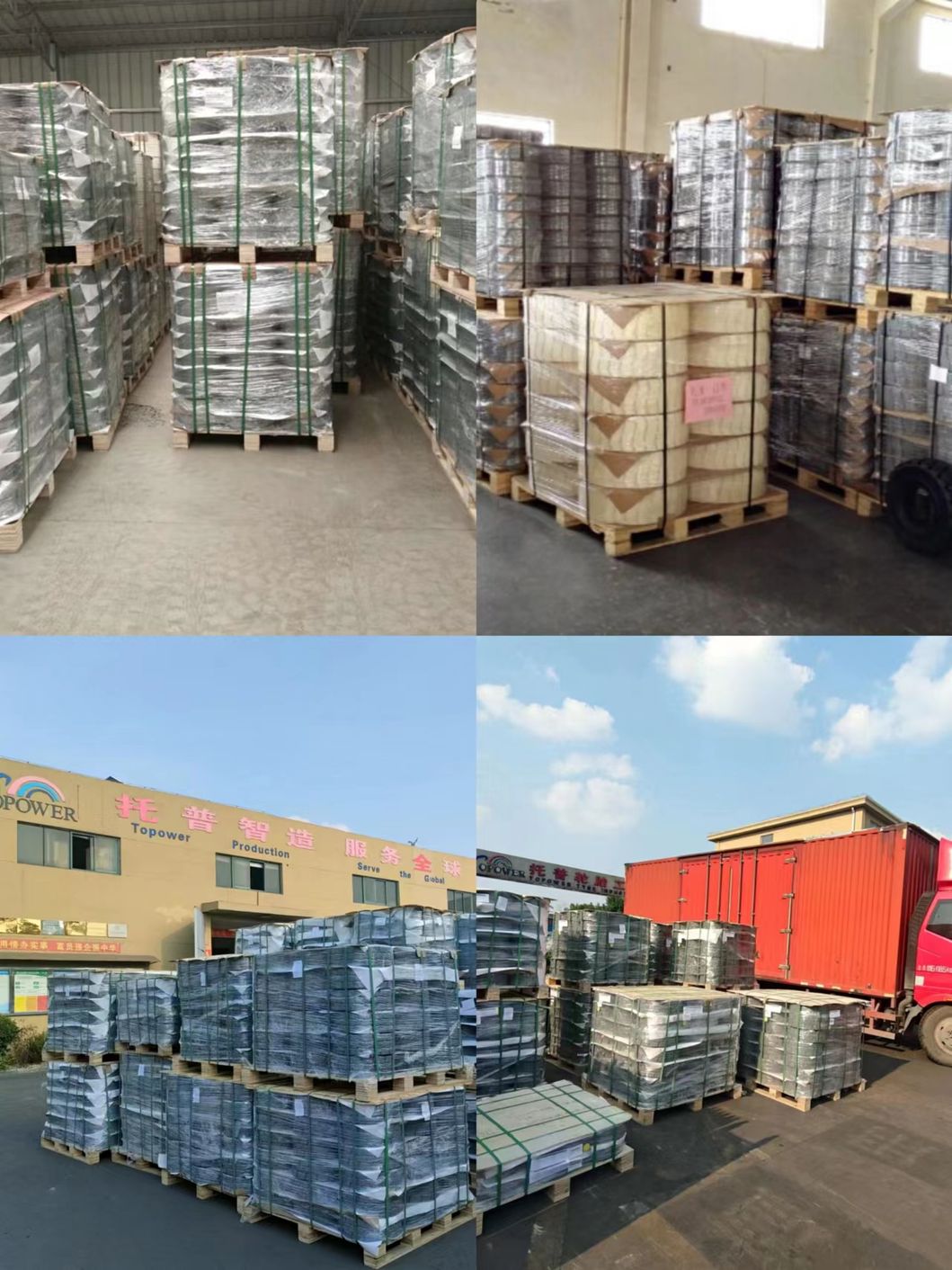

Package:
