Model NO.
ST091
Power
501-1000W
Charging Time
6-8h
Packaging
Carton
Wheel Hub
Aluminum Alloy
Motor
24V 1000W Brush
Loading Capacity
150kgs
Reverse Speed
0-5km/H
Turning Radius
2180mm
Range Per Charge
25km
Tire Size
13"
G./N.W.
90/82kgs
Transport Package
1PC/CTN Honeycomb Carton
Specification
1740*720*580 mm
Trademark
Flybrother or customized
Origin
China
HS Code
8713900000
Production Capacity
5000PCS/Month
Climbing Capability:
13 Degree
Load Capacity:
100-200kg
Accessories:
Basket
Certification:
CE
Folded:
Unfolded
Voltage:
24V

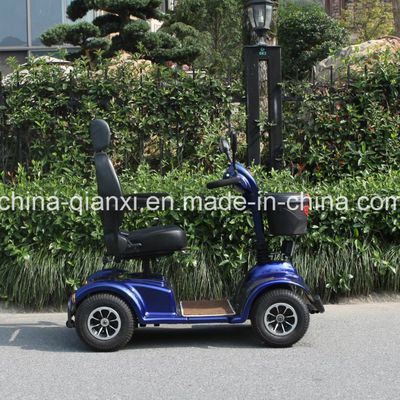

1.ST091 big wheel electric scooter with four wheels specification:
ST091 big wheel electric scooter is an upgrading one which is equipped with the
high-powered actuating device,batteries and so on. ST091 big wheel electric scooter
is a safe scooter for elder or the disabled .
2.Electric mobility scooter specification:
| Item No. | ST095 | ST096 | ST091 | ST098 |
| Motor | 48V/500W Brushless | 48V/500W Brushless | 24V/1000W Brush | 24V/250W Brush |
| Battery | 2V20Ah*4 | 2V20Ah*4 | 12V38Ah*2 | 2V20Ah*2 |
| Charger | AC100-240V 50/60HZ Output:48V 2A | AC100-240V 50/60HZ Output:48V 2A | AC100-240V 50/60HZ Output:24V 5A | AC100-240V 50/60HZ Output:24V 2.5A |
| Loading capacity | 150kgs | 150kgs | 150kgs | 150kgs |
| Charging time | 6-8h | 6-8h | 6-8h | 6-8h |
| Climbing ability | ≥9° | ≥9° | ≥13° | ≥13° |
| Driving distance | 48km | 48km | 25km | 20km |
| Forward & Reverse speed | 18 & 5 km/h | 28 & 5 km/h | 0-10 & 0-5 km/h | 0-10 & 0-5 km/h |
3.Electric mobility scooter parts images:
4.Our factory:
5.Certificate:
Factory:ISO9001:2008 standard
Products: Be rviewed against the slef declaration requirements of conformity for ce marking according to
annex 1 & 4 of the 93/42/eec medical device directive (including 2007/47/ec).
6.Our services:
1.For all your inquires about us or our products, we will reply you in detail within 24 hours
2.We own passional sales & after- sale services who can speak fluent english language
3.We offer oem services.Can print your own logo on product , can customize the retail box packing and other
things.
4.We have very experienced engineers and we help you better use our products.
