Model NO.
XS-PM2.5
Material
Plastic
IP Rating
IP65
Sensitivity
High
Certification
CE
Customized
Customized
Measuring Range
0.0-999.9μG/M3
Relative Error
±15% and ±10μG/M3 Maximum
Minimum Detection Particle
0.3μm Diameter
Power Supply Mode
DC 24V;DC 12V
Communication Mode
RS485
Ambient Temperature
-20ºC~+60ºC
Power Consumption
350 MW
Transport Package
Covered with Carton Package
Specification
Power supply mode: DC 24V; DC 12V
Trademark
Veinasa
Origin
China
Production Capacity
1000
Type:
Pm2.5sensor
Output Signal Type:
Digital Type
Production Process:
Integration

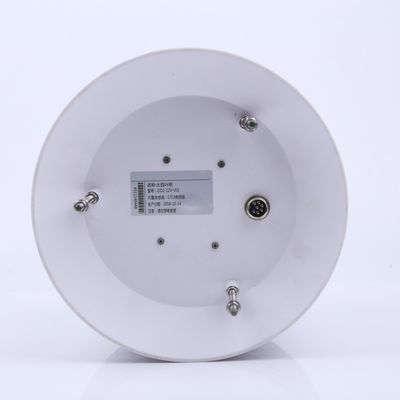

XS-PM2.5 Air Quality Sensor Dust Particle Mater Sensor for PM10 or PM2.5 Sensor
XS-PM2.5 air quality sensor dust particle mater sensor for PM10 or PM2.5 sensor adopt the principle of laser scattering, which can sensitively detect the concentration of PM2.5 in the environment, uses imported lasers and photosensitive parts, and the data is stable and reliable. The built-in fan has high integration; the sensor's supply voltage and output signal can be changed as needed. Supply voltage and the type of signal output.
Measuring range | 0.0-999.9μg/m3 |
Relative error | ±15% and ±10μg/m3 maximum tolerance (25ºC,50%RH) |
Minimum detection particle | 0.3μm diameter |
Power supply | DC 12V |
DC 24V | |
other | |
Output format | RS485 |
other | |
Cable length | standard:2.5 m |
other | |
Load resistance | Voltage type:RL≥1K Current type: RL≤300Ω |
Ambient temperature | -20ºC~+60ºC |
Environmental humidity | 0~70% |
Product power consumption | 350 mW (Single sensor is connected to the data logger) |
XS-PM2.5 air quality sensor dust particle mater sensor for PM10 or PM2.5 sensor feature:
1. Adpot laser scattering theory
2. Use imported lasers and photosensitive parts, which enables the data more stable and reliable.
3. Power supply and output singla can be made according to client's requirement.
2. Use imported lasers and photosensitive parts, which enables the data more stable and reliable.
3. Power supply and output singla can be made according to client's requirement.
1. If equipped with the data logger produced by our company, directly use the sensor cable to connect the sensor to the corresponding interface on the collector.
2. If the transmitter is purchased separately, the transmitter cable sequence is:
2. If the transmitter is purchased separately, the transmitter cable sequence is:
Line color | Communication type |
black(green) | Power ground |
yellow | A+/TX |
blue | B-/RX |
The applications of XS-PM PM2.5 and PM10 Integrated Air Quality Monitoring System Dust Sensor for Meteo Station:
Q: Are you a factory/manufacturer? A: Yes, we are a professional factory/manufacturer of water quality sensors. We also have hot sale and widely used dust sensor XS-PM10/XS-PM2.5.
Q: What are the power supply output and common signal output? A: The common power supply output and signal output are 12~24VDC and RS485 respectively. But we can customize for you as demands.
Q: How can I collect data? A: If you have your own data logger, you only need to buy our sensor and meanwhile we send you communication protocol. If you do not have, we can add our data logger for you, also provided with English software, which can help you read, inquire and download data.
Q: What's the lifetime of this dust sensor(XS-PM)?
A: At least 5 years long. Every sensor has its own calibration certificate or testing report.
Q:What's the delivery time?
A: Usually, we dispatch goods in 3-5 working days after receiving your payment. But it depends on your quantity.
Q: May I know your warranty?
A: Yes, usually it's 1 year. We can send you detailed warranty document if needed.
