Model NO.

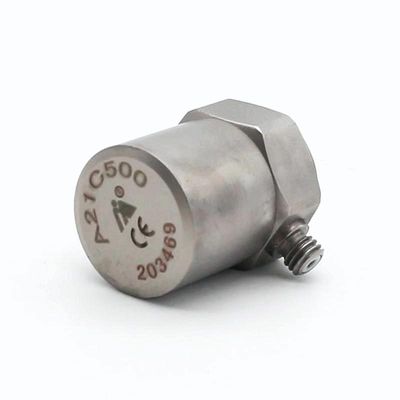

A21C500
Customized
Customized
Transport Package
Carton
Trademark
xiyuan
Origin
China
HS Code
9031809090
Production Capacity
10000 Pieces/Year
Type:
Piezoelectric
Output Signal Type:
Analog Output
Measuring Shaft Quantities:
Single
Accuracy Grade:
0.1G
IP Rating:
IP65
Certification:
ISO
| Dynamic Properties | |
| Range(peak) | ±10g |
| Sensitivity(25ºC) | 500mV/g (160Hz) |
| Frequency Response(±1dB) | 0.5-3,000Hz |
| Transverse Sensitivity Ratio | ≤5% |
| Electrical Properties | |
| Driving Voltage | 18VDC-28VDC (current source) |
| Constant current source excitation(mA) | 2-10mA |
| Output Impedance | <100 Ω |
| Full range output(peak) | ±5V |
| Noise | <50μV |
| Bias voltage | +9- +12V |
| Environment Properties | |
| Operation Temp | -40ºC~+120ºC |
| Shock Resistance(peak) | ±1000 g |
| Temperature Response | Attached |
| Physics Properties | |
| Structural Style | cutting |
| Shell Material | 304 Stainless Steel |
| Output Mode | Side M5 |
| Installation | M5 |
| Piezoelectric Materials | PZT-5 |
| Weight | ~46 g |
| Accessory | |
| Install the screw | M5 |
| Cable | Double end M5 universal coaxial cable x 2m |
