Model NO.
HM8500T
Wiring Type
Four-Wire
Measuring Medium
Oil
IP Rating
IP65
Certification
IATF16949
Customized
Customized
Transport Package
Neutral Packing
Specification
0~10bar (Customizable)
Trademark
FLUHANDY
Origin
China
HS Code
9026209090
Production Capacity
100000pieces/Month
Type:
Piezoresistive Pressure Sensor
Component:
SemiConductor Type
For:
Diffused Silicon Pressure Transmitter
Output Signal Type:
Analog Type
Production Process:
Integration
Material:
Metal or Plastic

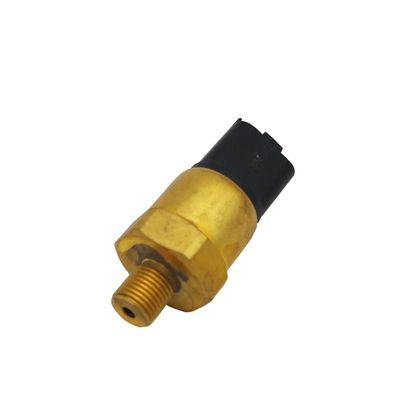

What is engine oil pressure sensor?
In modern trucks and buses, oil pressure sensors monitor the oil pressure in the motor oil and transmission oil circuit. The measured pressures are recorded in real time in the control unit of the vehicle, evaluated and used to optimise engine parameters.
In modern trucks and buses, oil pressure sensors monitor the oil pressure in the motor oil and transmission oil circuit. The measured pressures are recorded in real time in the control unit of the vehicle, evaluated and used to optimise engine parameters.
| Item | Specification |
| Product Series | Oil Pressure Sensor |
| Pressure Range | 0~10bar (Customizable) |
| Power Supply | 5V (Customizable) |
| The Output Signal | 0.5-4.5V (Customizable) |
| Installation Dimension | / |
Overload pressure | 150%FS |
| Burst Pressure | 300%FS |
| Accuracy | 1.5%FS (Customizable) |
| Working Temperature | -40~120ºC |
| Compensation Temperature | 0-80ºC |
| Measuring Medium | Oil |
| Load Resistance | >2KΩ |
| Insulation Resistance | 500V/100MΩ |
| Response Time | 1mS |
| Warranty | 12 months |
| Condition | 100% New |
| Quality | 100% Tested |
√Accurate √Reliable √Anti-Vibration √ Impact Resistance
.High integration, good long-term stability
.Signal amplification, &temperature compensation
.High sensitivity, fast response speed
.Accurate measurement results
.Strong and compact structure, easy to install in small space
.High integration, good long-term stability
.Signal amplification, &temperature compensation
.High sensitivity, fast response speed
.Accurate measurement results
.Strong and compact structure, easy to install in small space
