Model NO.
WA19
Thread Type
NPT
Wiring Type
Four-Wire
Measuring Medium
Media Compatible with 316L Stainless Steel
IP Rating
IP65
Certification
ISO
Customized
Customized
Model No.
Wa19
Output Signal
Analog Type
Working Temperature
-40~125ºC
Pressure Range
0-40kpa^7MPa
Compensation Temperature
-20~70ºC
Typical Output
0-100mv
Usage
Industrial
Sealing Material
NBR
Place of Origin
Heifei, Anhui, China
Transport Package
Paper Carton and as Customer′s Requirement
Trademark
WNK
Origin
Hefei, Anhui Province, China
Type:
Piezoresistive Pressure Sensor
Component:
OEM Technology
For:
Diffused Silicon Pressure Transmitter
Output Signal Type:
Analog Type
Production Process:
Integration
Material:
Stainless Steel
WA19 Piezoresistive Pressure Sensor
Dimensions - Pressure Sensor:
Ribbon Cable
Connect Pin
Why choose WNK?
1. Founded in 2004 , 12 years producing experience of sensors, transmitters
2. Chinese first having completely proprietary intellectual property rights of PROFIBUS temperature transmitter
3. Chinese industry leader in cement applying field
4. Aboundant experience of OEM & ODM with customers around the country including many trading companies. 5. Having not done foreign trade before, but users of our products have been all over the world
6. WNK profound accuracy of 0.075% is unique in our local, and it has been local measurement standard.
7. WNK has been continously awarded National High-tech Enterprice, Hefei Famous Brand, Chinese Top Ten Famous Brand of Transmitters, Chinese AAA Enterprice of Quality Guarantee and Good Faith, Chinese Industrial Fieldbus Leading Enterprice and etc.
FAQ
A11 series are based on piezoresistive silicon pressure sensors packaged in a 316L stainless steel housing. The sensing package utilizes silicon oil to transfer pressure from the 316L diaphragm to the sensing element.
It is designed for o-ring mounting for the applications where compatibility with corrosive media is required. Each sensor was strictly temperature compensated for both zero and span.
There are two options of excitation power -- constant current and voltage.
Features - Pressure Sensor:
1. Low cost OEM
2. High stability and accuracy
3. Suited for pressure of 0-40Kpa...7Mpa
4. Wide compenstation temperature range
5. Compatible with 316L, suitable for corrosive media
6. Standard mounting size
7. Typical output: 0-100mV
Specifications of current excitation(1.5mA, 25ºC):
Specifications of voltage excitation(10VDC 25ºC):
Note:Features - Pressure Sensor:
1. Low cost OEM
2. High stability and accuracy
3. Suited for pressure of 0-40Kpa...7Mpa
4. Wide compenstation temperature range
5. Compatible with 316L, suitable for corrosive media
6. Standard mounting size
7. Typical output: 0-100mV
Specifications of current excitation(1.5mA, 25ºC):
| Parameters | Min. | Typical | Max. | ||
| Accuracy(%FS) | |||||
| Non- Linearity1 | 40Kpa | ±0.20 | ±0.30 | ||
| >40Kpa | ±0.10 | ±0.20 | |||
| Hysteresis2 | ±0.05 | ±0.1 | |||
| Repeatibility3 | ±0.05 | ±0.1 | |||
| Output(mV) | |||||
| Zero | -2 | ±1 | 2 | ||
| Span(FS) | 70 | ||||
| Temp. characters | |||||
| Operation Temp.(ºC) | -40 | 125 | |||
| Compensation Temp(ºC) | 40Kpa | 0 | 50 | ||
| 100Kpa | 0 | 70 | |||
| >100Kpa | -10 | 70 | |||
| Zero Temp.error(%FS)4 | ±0.75 | ±1.0 | |||
| Span Temp. error(%FS)4 | ±0.75 | ±1.0 | |||
| Thermal hysteresis(%FS)5 | 0.1 | ||||
| Long term Stability | |||||
| Zero (±%FS annual) | 0.1 | ||||
| Span (±%FS annual) | 0.1 | ||||
| Supply Current | 0.5mA | 1.5mA | 2mA | ||
| Input Resistance | 2kΩ | 2.5kΩ | 3kΩ | ||
| Output Resistance | 2.5kΩ | 3kΩ | 3.7kΩ | ||
| Load Resistance6 | 5MΩ | ||||
| Insulation Resistance(50V)7 | 50MΩ | ||||
Specifications of voltage excitation(10VDC 25ºC):
| Parameters | Min. | Typical | Max. | ||
| Accuracy(%FS) | |||||
| Non- Linearity1 | 40Kpa | ±0.20 | ±0.30 | ||
| >40Kpa | ±0.10 | ±0.20 | |||
| Hysteresis | ±0.05 | ±0.1 | |||
| Repeatability | ±0.05 | ±0.1 | |||
| Output(mV) | |||||
| Zero | -2 | ±1 | 2 | ||
| Span(FS) | 98 | 100±1 | 102 | ||
| Temp. characters | |||||
| Operation Temp.(ºC)3 | -40 | 125 | |||
| Compensation Temp(ºC) | 40Kpa | 0 | 50 | ||
| 100Kpa | 0 | 70 | |||
| >100Kpa | -10 | 70 | |||
| Zero Temp.error(%FS)4 | ±0.75 | ±1.0 | |||
| Span Temp. error(%FS)4 | ±0.75 | ±1.0 | |||
| Thermal hysteresis(%FS) | 0.1 | ||||
| Long term Stability | |||||
| Zero (±%FS annual) | 0.1 | ||||
| Span (±%FS annual) | 0.1 | ||||
| Supply Voltage | 10VDC | 14VDC | |||
| Input Resistance | 6kΩ | 8kΩ | 10kΩ | ||
| Output Resistance | 2.5kΩ | 3kΩ | 3.7kΩ | ||
| Load Resistance5 | 5MΩ | ||||
| Insulation Resistance(50V)6 | 50MΩ | ||||
| Pressure Range | 0-40Kpa7Mpa | ||||
| Pressure Overload | ≤4Mpa | 2X | |||
| 7Mpa | 1.5X | ||||
| Pressure Media | Liquids and Gases compatible with 316L Stainless Steel | ||||
1. Best fit straight line.
2. Measured at vacuum for absolute (A), ambient for gage (G).
3. Maximum temperature range for product with standard cable is -20°C to +105°C.
4. Over the compensated temperature range with respect to 25°C.
5. Load resistance to reduce measurement errors due to output loading.
6. Between case and sensing element.

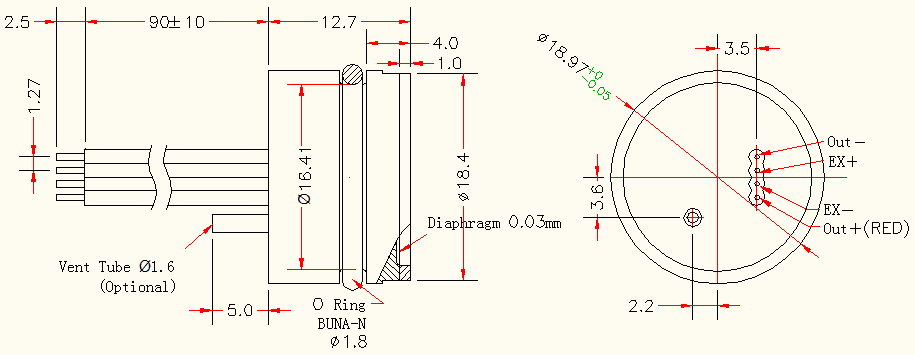

Dimensions - Pressure Sensor:
Ribbon Cable
Connect Pin
Why choose WNK?
1. Founded in 2004 , 12 years producing experience of sensors, transmitters
2. Chinese first having completely proprietary intellectual property rights of PROFIBUS temperature transmitter
3. Chinese industry leader in cement applying field
4. Aboundant experience of OEM & ODM with customers around the country including many trading companies. 5. Having not done foreign trade before, but users of our products have been all over the world
6. WNK profound accuracy of 0.075% is unique in our local, and it has been local measurement standard.
7. WNK has been continously awarded National High-tech Enterprice, Hefei Famous Brand, Chinese Top Ten Famous Brand of Transmitters, Chinese AAA Enterprice of Quality Guarantee and Good Faith, Chinese Industrial Fieldbus Leading Enterprice and etc.
FAQ
Q: Are you trading company or manufacturer ?
A: We are a manufacturer since the year 2004, committed to producing high accuracy, long-term stability, cost-efficient pressure/level/temperature measuring instruments.
Q: What's your quality control system?
A: Our factory is cerrified under ISO 9001-2015. All products are completed with temperature compensation and 48 hours aging test before shipment.
Q: What is the warranty of your products?
A: 12 month from shipment date, for non-man-made damages.
Q: Shipping and Delivery
A: Small orders are delivered with DHL, Fedex, TNT, UPS , with delivery time in 4 - 5 business days.
Large orders are recommended to ship by sea
