1.Detail of W712/83
| Outer Diameter | 74 mm (2.91 inch) |
| Thread Size | 3/4-16 |
| Length | 84.5 mm (3.33 inch) |
| Gasket OD | 70 mm (2.76 inch) |
| Gasket ID | 63 mm (2.48 inch) |
| Efficiency 99% | 50 micron |
| Efficiency Test Std | JIS D 1611 |
| Anti-Drainback Valve | Yes |
| Bypass Valve | Yes |
| Bypass Valve Setting LR | 0.78 bar (11 psi) |
| Bypass Valve Setting HR | 1.2 bar (17 psi) |
| Media Type | Cellulose |
| Collapse Burst | 6.9 bar (100 psi) |
| Type | Full-Flow |
| Style | Spin-On |

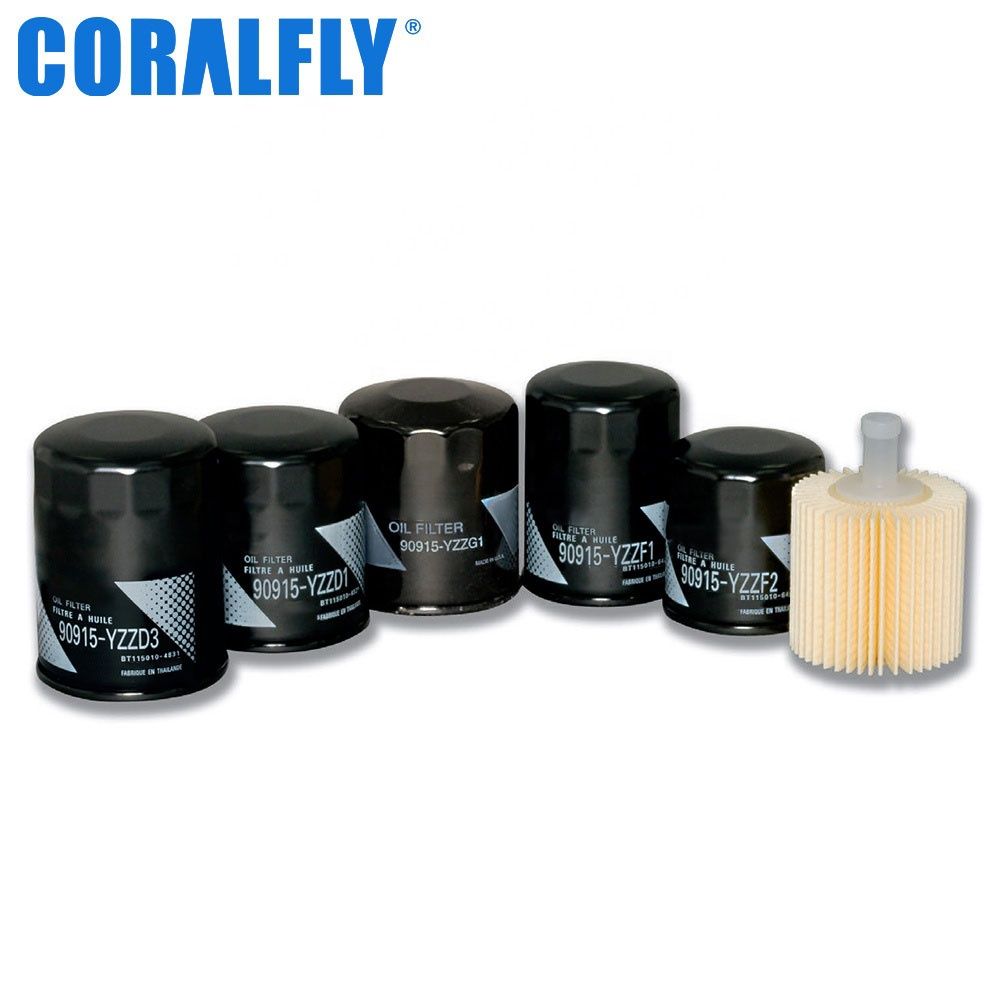

2.Photo of 90915 YZZJ4
3.OEM Cross Reference
| Manufacturer Name | Manufacturer Part # |
|---|---|
| AC DELCO | PF1212 |
| ALCO | SP951 |
| AMERICAN MOTORS CORPORATION | 144445 |
| AMSOIL | EAO57 |
| ASV INCORPORATED | 0200377 |
| AUTO PRIDE | CF2951AP |
| BOSCH-REXROTH | 72177 |
| CASE/CASE IH | C111 |
| CASITE | CF2951 |
| CHAMP | C171 |
| CLEAN | PO3614 |
| COMPAIR | C16012662 |
| COOPERS | Z1015 |
| CUSHMAN | 140516990 |
| DAIHATSU | 156011301 |
| DANIEL DOYEN | DOF8108 |
| DENSO | 1150102191 |
| ECHLIN | OF72 |
| EXMAN | 144445 |
| FEDERAL MOTORS | FMS2052 |
| FEDERATED | LF384F |
| FIAAM | FT5274 |
| FORD | 5010292 |
| FSA | FO1053 |
| GMC | 25011704 |
| GROUP 7 | V241 |
| INGERSOLL RAND | 32305674 |
| INTRUPA | 83417 |
| JLG | 1733165 |
| JOHN DEERE | TY15218 |
| KNECHT | OC235 |
| KUBOTA | 6620136161 |
| LIUGONG | 40C0928 |
| MASSEY FERGUSON | 140516190 |
| MILLER ELECTRIC | 202166 |
| MOTAQUIP | VFL226 |
| NORMAN ULTRAPOROUS | U3124 |
| ONAN | 1220845 |
| PROMOTIVE | PH241 |
| PRONTO | PO2821A |
| PUROLATOR | PER268 |
| RANSOMES | 2198280 |
| SHELL | LF384 |
| SOFIMA | S3253R |
| SUNWARD | 730403000086 |
| SUZUKI | 1651082703 |
| TCM | 115G382241 |
| TEHO | 4075 |
| TORO | 140516190 |
| TOYOTA | 892202004 |
| UFI | 092325340 |
| UNION CITY BODY | C111 |
| UNIPART | GFE285 |
| VIC | C111 |
| VMC | LF502016 |
5.Our Services
Service provide:
OEM ODM & OBM service; Coralfly packaging or according to customer's need packaging
Quality Guarantee:
If there have any quality problems with CORALFLY products, we are willing to be replaced free.
After-sales service:
There is any problem caused by using CORALFLY products:
1). Keep the defective products and contact with Coral Machinery or Coral Machinery distributor
of your religion timely.
2). Do not cut or change any suspected problem products, if necessary, Send the suspected filter
and the attached oil and the coolant sample together to Coral Machinery or Coral Machinery
distributor of your religion timely.
3). Attached with repair document, parts list, labor costs and any other materials which can support
a claim for compensation.
6.Our Company
7.FAQ
1. What's Minimum Order Quantity?
A: Each item and/or color has a minimum order quantity, which would be stated in our quote sheet.
Assorted items would be negotiable upon request.
2. What's kind of your packaging?
Coralfly packaging or customer's requirements.
3. Could I get some samples? How could i pay the sample payment?
A: We are honored to offer you samples. We accept the sample payment
via Western Union or Bank of China.
4. How long is your Delivery Lead Time ?
A: If there is stock, the lead time is about one week after we get the payment,
if need to be produced, 7-20 days after we get the prepay.
5. Could you Calculate the shipping cost for me?
A: Yes, we are honored to do that for you! Before the freight ,
please well let us know which seaport or airport near your place.
