Model NO.
kmd1218I
Brake Size
420X200
Capacity
12t 14t 16t
Track Length
1840mm
Usage
Trailer or Truck
Transport Package
Nude
Trademark
JLB
Origin
China
HS Code
871690
Production Capacity
50000PCS/Month
Condition:
New
Axle Number:
1
Application:
Trailer
Certification:
ASTM
Material:
Steel
Type:
Rear Axles

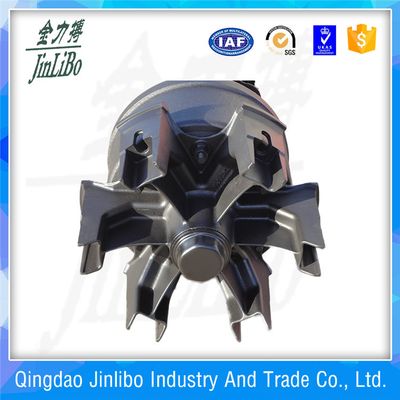

| GERMANY TYPE AXLE SPECIFICATIONS | ||||||||||||
| AXLE TYPE | BRAKE SIZE | WHEEL FIXING | NO.XSIZE OF WHEEL STUD (DIM A) | WHEEL REG.DIA.(DIM B) | DIM D | BEARING | MIN WHEEL SIZE | BEAM SIZE | TRACK LENGTH(DIM C) | AXLE CAPACITY | SPRING SEAT INSTALLATION | WEIGHT |
| KMD1218I | 420X180 | ISO | 10xM22x335 | 281 | 711.5 | 33213 33118 | 20´´ | square150 | 1840mm | 12T | ≤450 | 370KG |
| KMD1218J | 420X180 | JAP | 8xM20x285 | 221 | 711.5 | 33213 33118 | 20´´ | square150 | 1840mm | 12T | ≤450 | 370KG |
| KMD1220I | 420X200 | ISO | 10xM22x335 | 281 | 721.5 | 33213 33118 | 20´´ | square150 | 1840mm | 13T | ≤450 | 397KG |
| KMD1418I | 420X180 | ISO | 10xM22x335 | 281 | 733 | 33215 32219 | 20´´ | square150 | 1840mm | 14T | ≤450 | 400KG |
| KMD1420I | 420X200 | ISO | 10xM22x335 | 281 | 743 | 33215 32219 | 20´´ | square150 | 1840mm | 14T | ≤450 | 417KG |
| KMD1618I | 420X180 | ISO | 10xM22x335 | 281 | 723 | 32314 32222 | 20´´ | square150 | 1870mm | 16T | ≤450 | 450KG |
| KMD1620I | 420X200 | ISO | 10xM22x335 | 281 | 733 | 32314 32222 | 20´´ | square150 | 1870mm | 16T | ≤450 | 459KG |
| KMD1622I | 420X220 | ISO | 10xM22x335 | 281 | 733 | 32314 32222 | 20´´ | square150 | 1870mm | 16T | ≤450 | 465KG |
