TC6012
Video Technical Support, Online Support,
One Year Warranty
GS, RoHS, CE, ISO9001
New
200-250m
>10t
Assembled
Fixed
Top-Slewing Crane
16800 Kg
75.5kw
60m
240m
China Brand
Nude Package
2000*2000*3000mm
Jiangsu
8426200000
Product Description

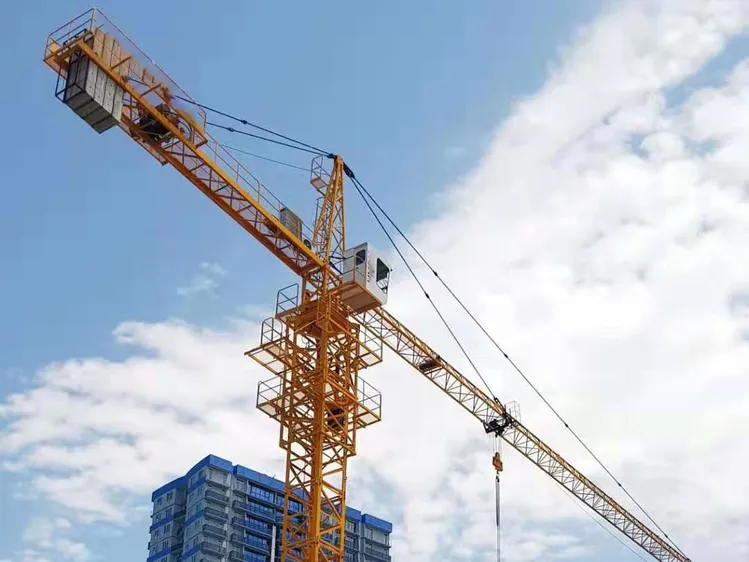

8 ton Tower Crane TC6012
This Tower Crane used PLC control.Hoisting mechanism using high-power motor, lifting power stronger, more stable operation; rotating mechanism block torque is relatively large, relative to other equivalent models, the torque is more powerful. Machine modeling and painting for specialized industrial design, beautiful appearance coordination.
Performance Characteristics:
1. Stronger and better lifting performance.
2. Self-pressure counter weight technology, safe and reliable.
3. Aviation plugs, preventmisconnection; high system reliability and low maintenance cost.
4. Compact design of whole machine, transfer operation is convenient and efficient.
Model | SYT160 (T7015-10) |
Power Frequency | 50Hz |
Power Voltage | 380V |
Free Standing Height | 60m |
Max Jib Length | 70m |
Max Lifting Capacity | 16T |
Max Lifting Moment | 160t/m |
The Max Height under Hook | 230m |
Tip Load at Max Jib Length | 1.5T |
The Power of Hoisting Mechanism | 55kW |
The Power of Luffing Mechanism | 5.5kW |
The Power of Slewing Mechanism | 2×7.5kW |
The Speed of Hoisting Mechanism | 0-100r/min |
The Speed of Luffing Mechanism | 0-55r/min |
The Speed of Slewing Mechanism | 0-0.8r/min |
