Product Description
ZYX Series Isolated Compressed Oxygen Self Rescuer
ZYX Series Isolated Compressed Oxygen Self-Rescuer is a reusable self-rescue escape device that uses high pressure compressed oxygen as a source of oxygen. Mainly used in coal mine or environmental air pollution of poisonous gas and asphyxia hazards,field personnel quickly wear,the protection of human normal breathing to flee coal mine workers in the event of gas outburst,fire and explosion disaster accident,as well as rescue workers in respiratory failure using rapid evacuation.zmwm20
Introduction Of ZYX Series Isolated Compressed Oxygen Self Rescuer
ZYX Series Isolated Compressed Oxygen Self-Rescuer is a reusable self-rescue escape device that uses high pressure compressed oxygen as a source of oxygen. Mainly used in coal mine or environmental air pollution of poisonous gas and asphyxia hazards,field personnel quickly wear,the protection of human normal breathing to flee coal mine workers in the event of gas outburst,fire and explosion disaster accident,as well as rescue workers in respiratory failure using rapid evacuation.zmwm20
Parameters Of ZYX Series Isolated Compressed Oxygen Self Rescuer
| Model | ZYX30 | ZYX45 | ZYX60 | ZYX120 |
| Protect time | ≥30min | ≥40min | ≥60min | ≥120min |
| Capacity of oxygen bottle | 0.3L | 0.38L | 0.4L | 1.0L |
| Oxygen storage capacity | 56L | 80L | 140L | 240L |
| Inspiratory oxygen concentration | 25% | 25% | 25% | 25% |
| Inhaled carbon dioxide concentration | 2% | 2% | 2% | 2% |
| Quantitative supply of oxygen | 1.2L/min | 1.2L/min | 1.2L/min | 1.2L/min |
| Manual supply of oxygen supply | 60L/min | 60L/min | 60L/min | 60L/min |
| Cylinder filling pressure | 20Mpa | 20Mpa | 20Mpa | 20Mpa |
| Period of validity | 3-5 years | 3-5 years | 3-5 years | 3-5 years |
| Outline dimensions | 210*167*80mm | 225*177*90mm | 235*180*92mm | 285*205*100mm |
| weight | 1.8kg | 2.1kg | 2.4kg | 4.3kg |

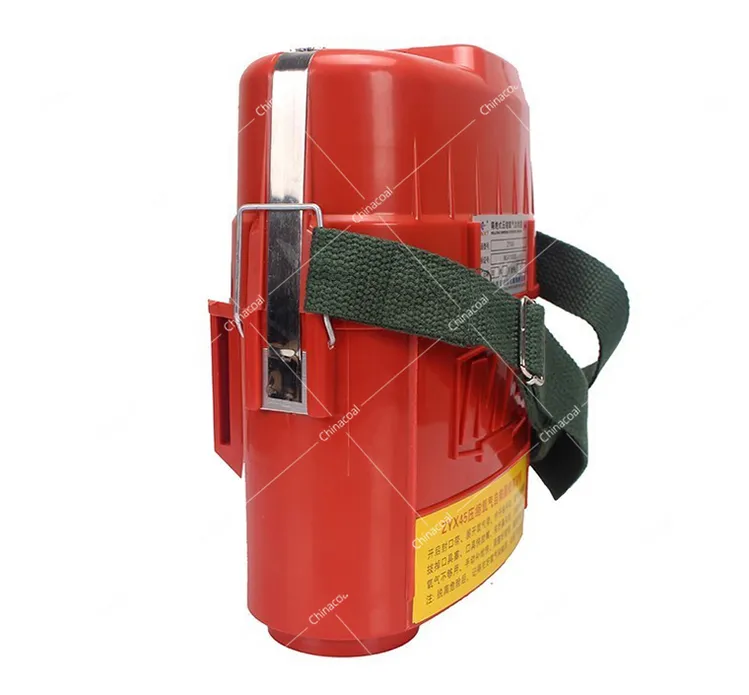

Photos Of ZYX Series Isolated Compressed Oxygen Self Rescuer
