Model NO.
HPM20F
Thread Type
M
Wiring Type
Two-Wire
Measuring Medium
Liquid Gas Steam
IP Rating
IP65
Certification
ISO9001
Customized
Customized
Sensor Type
Pressure Sensor
Pressure
0~20kPa...10MPa
Pressure Reference
Gauge, Absolute, Sealed Gauge
Accuracy
0.5%F.S.
Over Pressure
1.5 times pressure range of full scale
Supply
24VDC
Output
4~20mADC
Working Temp
-30~85ºC
Storage Temp
-40~120ºC
Protection of Shell
IP65
Electrical
Dedicated shield cable 1.5 meters
Transport Package
Carton
Trademark
HangJia Sensor
Origin
China
HS Code
90262010
Production Capacity
50000 Pieces / Year
Type:
Protective Pressure Transmitter
Component:
SemiConductor Type
For:
Protective Pressure Transmitter
Output Signal Type:
Analog Type
Production Process:
Integration
Material:
Metal
Product Overview:

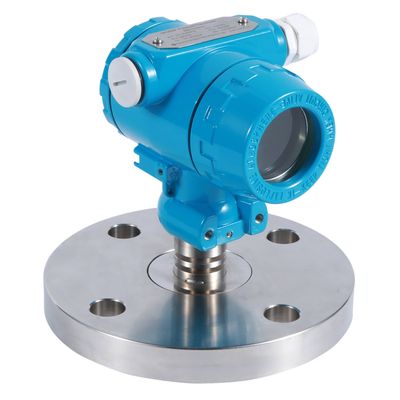

HPM20F Flange Diaphragm Pressure Transmitter regards international standard flange as the interface standard to achieve the requirements of flange field installation. It has advanced technology and adopts high stable and reliable silicon piezoresistive pressure sensor as signal measuring element. And it is processed through automatic testing and laser trimming to achieve wide temperature compensation. This product has stable and reliable performance because they all pass the strict testing and long-term ageing testing. HPM20F can meet the requirements of corrosion resistance and sanitation, which is can be widely used for pressure measurement in the fields of machinery, metallurgy, petrochemical, power, food and medicine.
Features:
·Various optional materials for isolation diaphragm, high anti-corrosion grade
·Hygienic style, easy to clean, no dead angle
·Aluminium alloy shell, ingress protection IP65
·Field display, 4-20mADC signal output and other telecommunication signals
·With polarity reversal protection ,overcurrent and overvoltage protection
·Zero-scale and full-scale adjustable
·Strong anti-jamming, long-term stability
Parameters:
Structure Drawings:
Electrical Connection:
Ordering Guide:
Related Products:
Certification:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on sensor for 10 years.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
HPM20F Flange Diaphragm Pressure Transmitter regards international standard flange as the interface standard to achieve the requirements of flange field installation. It has advanced technology and adopts high stable and reliable silicon piezoresistive pressure sensor as signal measuring element. And it is processed through automatic testing and laser trimming to achieve wide temperature compensation. This product has stable and reliable performance because they all pass the strict testing and long-term ageing testing. HPM20F can meet the requirements of corrosion resistance and sanitation, which is can be widely used for pressure measurement in the fields of machinery, metallurgy, petrochemical, power, food and medicine.
Features:
·Various optional materials for isolation diaphragm, high anti-corrosion grade
·Hygienic style, easy to clean, no dead angle
·Aluminium alloy shell, ingress protection IP65
·Field display, 4-20mADC signal output and other telecommunication signals
·With polarity reversal protection ,overcurrent and overvoltage protection
·Zero-scale and full-scale adjustable
·Strong anti-jamming, long-term stability
Parameters:
| Measuring Medium | Liquid, Gas, Steam |
| Pressure Range | 0~20kPa...10MPa |
| Overload | 1.5 times pressure range of full scale |
| Pressure Type | Gauge, Absolute or Sealed Gauge |
| Accuracy | ±0.5%FS |
| Long-term Stability | ±0.2%FS/year |
| Temperature Coefficient of Zero | ±0.03%FS/ºC(Reference 25ºC) |
| Temperature Coefficient of Full Scale | ±0.03%FS/ºC(Reference 25ºC) |
| Working Temp | -30~85ºC |
| Medium Temp | -40~120ºC |
| Supply Voltage | 24VDC (12~30V) |
| Output Signal | 4~20mADC or customized |
| Output Mode | Two wire, Three wire |
| Load Resistance | ≤(U-12)/0.20Ω |
| Insulation Resistance | 100MΩ,500VDC |
| Ingress Protection of Shell | IP65 |
| Electrical Connection | Dedicated shield cable |
Structure Drawings:
 |  | ||||||
Electrical Connection:
Ordering Guide:
| Item NO. | Type | |||||||
| HPM20F | Flange Diaphragm Pressure Transmitter | |||||||
| Pressure Range | Measuring Range | |||||||
| (0~X)kPa | Fill out X directly | |||||||
| Code | Output Signal | |||||||
| B1 | (4~20)mA | |||||||
| B2 | (0~10)mA | |||||||
| B3 | (0~10)V | |||||||
| B4 | (0~5)V | |||||||
| B5 | (1~5)V | |||||||
| B6 | (0.5~4.5)V | |||||||
| Code | Flange Connection | |||||||
| F20 | DN20 | |||||||
| F25 | DN25 | |||||||
| F50 | DN50 | |||||||
| F80 | DN80 | |||||||
| Code | Electrical Connection | |||||||
| C2 | Cable Outlet | |||||||
| Code | Isolation Diaphragm | |||||||
| S6 | 316L | |||||||
| HC | Hastelloy C | |||||||
| TI | Tantalum | |||||||
| GD | Gold Plating | |||||||
| FE | PTFE | |||||||
| PA | PFA | |||||||
| Code | Additional Functions | |||||||
| G | Gauge Pressure(Default) | |||||||
| d | Explotions-proof type, Exd II CT6 | |||||||
| D1 | LED Display | |||||||
| D2 | LCD Display | |||||||
| HPM20F | (0~100)kPa | B1 | F25 | C2 | PA | GD2 | ||
Related Products:
Certification:
FAQ:
1. Q: Are you manufacturer or trading company?
A: We are manufacturer which focuses on sensor for 10 years.
2. Q: What's your quality control system?
A: MC, ISO9001, CE Certificated.
3. Q: What is the warranty of your products?
A: Our warranty time is 18 months after shipment.
4. Q: What is lead time of your product?
A: Normally, our factory lead time is within 10~15 working days for products without customization. You can also check lead time detail with our sales depending on different items.5. Q: Do you provide customized products?
A: Yes, we can laser mark your logo on products; OEM and ODM customization are welcomed.6. Q: What is your MOQ?
A: We have no MOQ limit, small quantity order is acceptable.7. Q: What's the transport?
A: Express such as DHL, FedEx, TNT, UPS for freight prepaid; and we can also use your own courier account to do the freight collect. For more goods we can arrange by air or by Sea.8. Q: What is your terms of payment ?
A: We could accept T/T, Paypal, WU.
